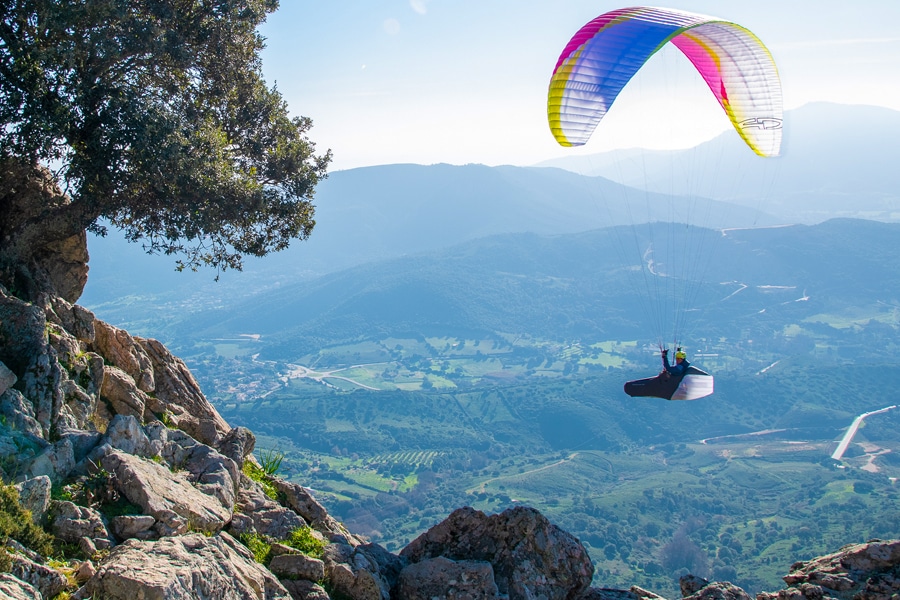

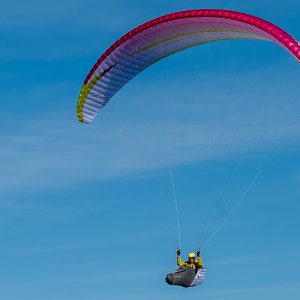

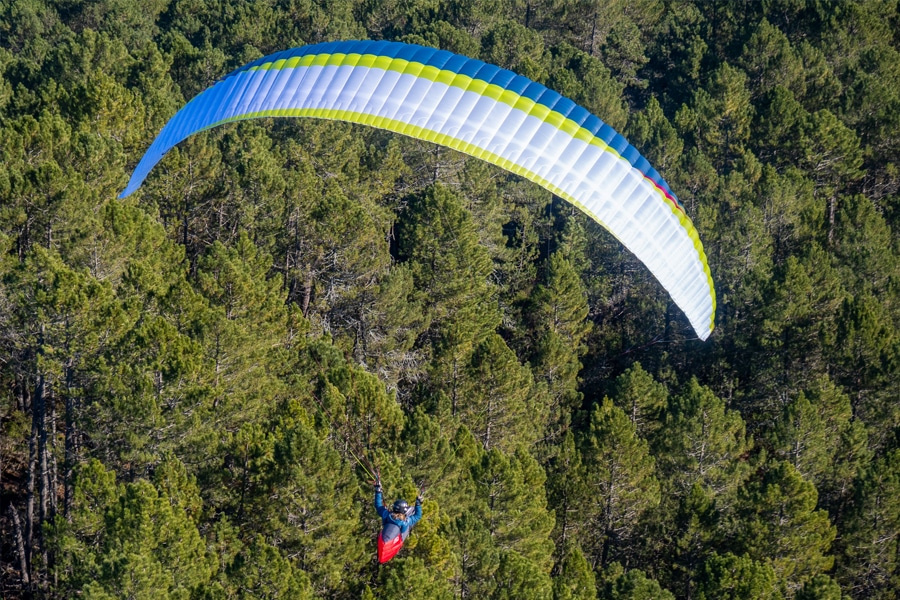

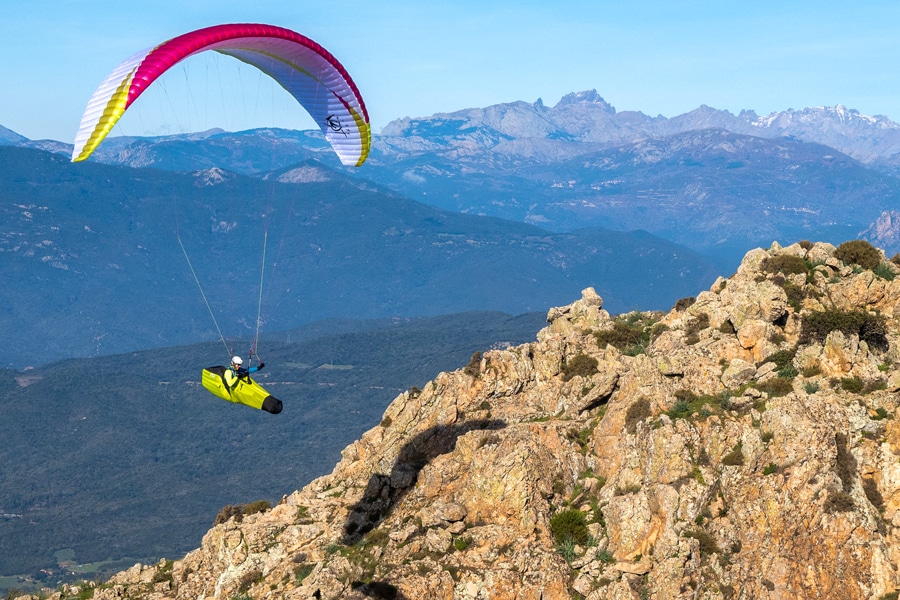

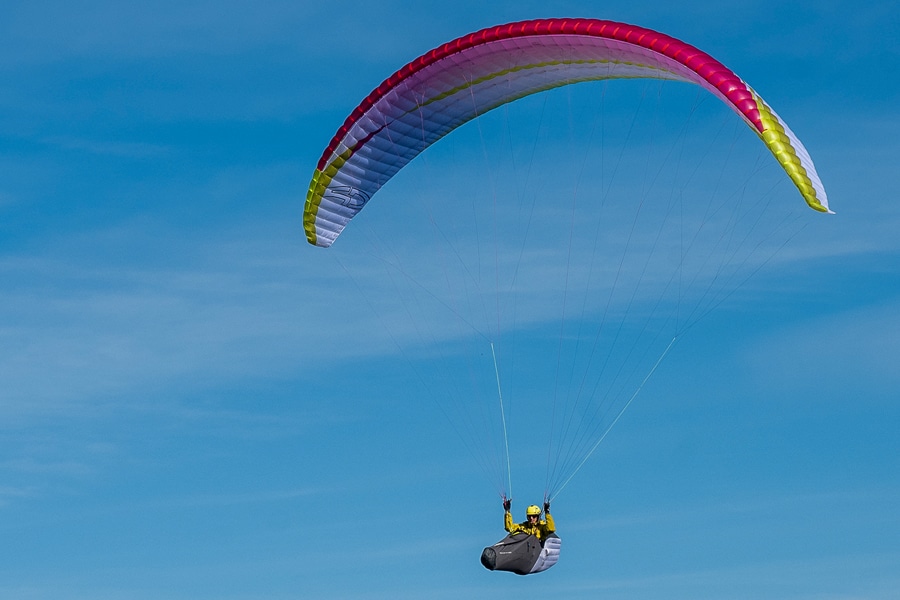

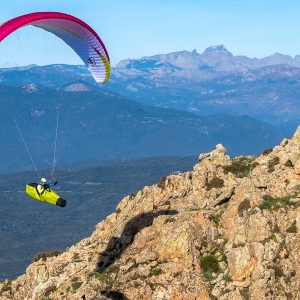

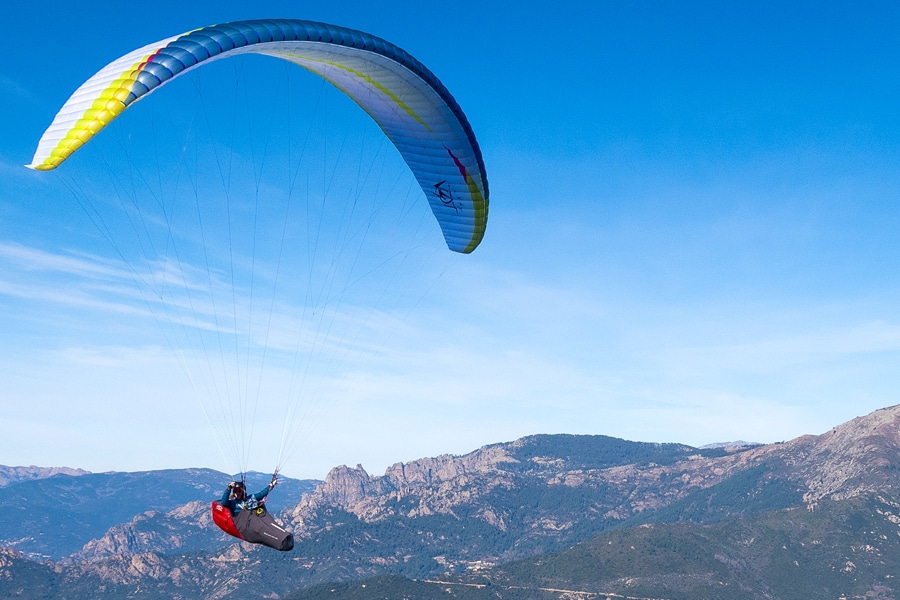

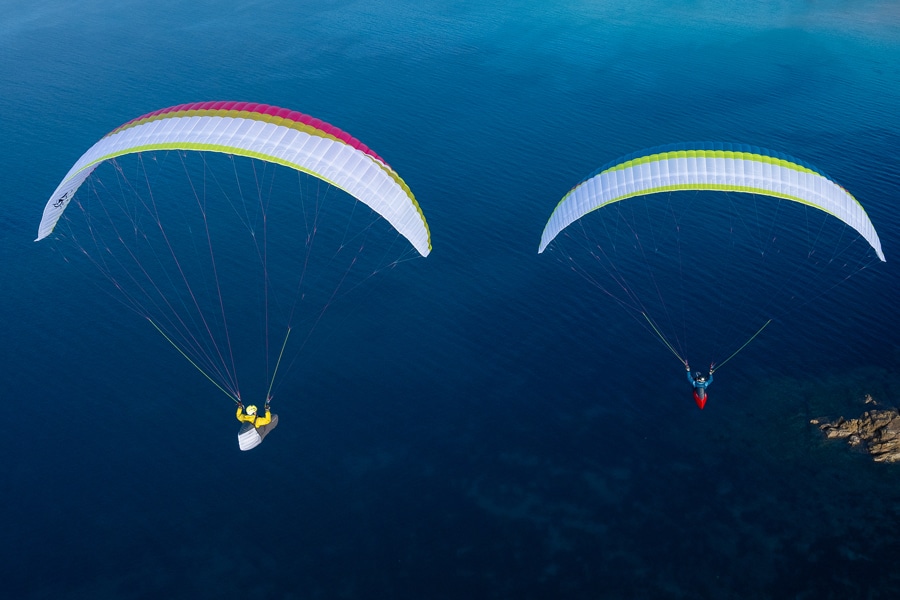

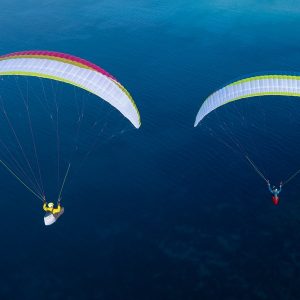

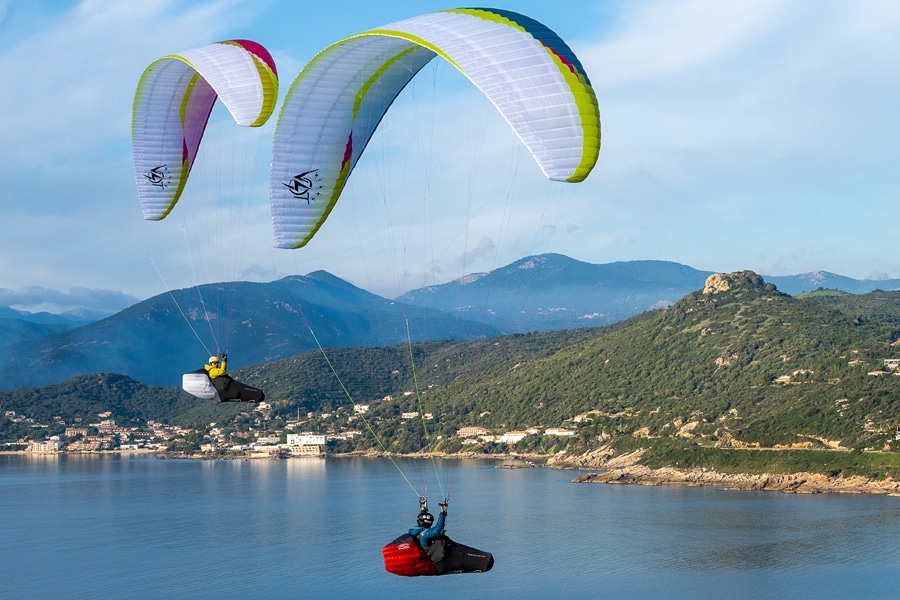

The Volt 5? A true EN-C 2-liner for kilometer hunters, hike-and-fly athletes and every pilot looking for a high-performance but accessible 2-liner while keeping a light kit. ‘Cause “nobody likes to walk with a heavy rucksack”. Just go for it!
Teknisk data:
| Size | XXS | XS | S | M | ML | L |
|---|---|---|---|---|---|---|
| Area flat (m²) | 19,97 | 21,40 | 22,85 | 24,59 | 26,33 | 28,07 |
| Area projected (m²) | 17,09 | 18,33 | 19,56 | 21,05 | 22,54 | 24,03 |
| Span flat (m) | 11,35 | 11,75 | 12,14 | 12,59 | 13,03 | 13,56 |
| Span projected (m) | 9,22 | 9,55 | 9,86 | 10,23 | 10,59 | 10,93 |
| Aspect ratio flat | 6,45 | 6,45 | 6,45 | 6,45 | 6,45 | 6,45 |
| Aspect ratio projected | 4,97 | 4,97 | 4,97 | 4,97 | 4,97 | 4,97 |
| Chord length (m) | 2,22 | 2,30 | 2,38 | 2,47 | 2,55 | 2,63 |
| Cells | 57 | 57 | 57 | 57 | 57 | 57 |
| Weight (kg) 13mm risers |
3,39 | 3,64 | 3,72 | 3,83 | 4,10 | 4,37 |
| Weight (kg) SL risers |
3,28 | 3,53 | 3,61 | 3,72 | 3,99 | 4,26 |
| Take off weight (kg) | 60-73 | 68-82 | 78-92 | 88-103 | 99-115 | 110-128 |
| EN category | C | C | C | C | C | C |
Material:
Sail
• Top Sail: Dominico DOKDO-10DSF double coated 25 g/m2
• Bottom Sail: Dominico DOKDO-10DSF double coated 25 g/m2
• Ribs: Dominico DOKDO-204432FM / Skytex 27 hard
Lines
• Top lines: Edelrid 8001/U-070, 090, 9200-035
• Middle lines: Edelrid 8001/U-130, 190
• Main lines: Edelrid 8001/U-190,230,280, 360
Riser
• Cousin 13mm Aramid
• Superlight (optional): Edelrid Taurus – 3,7mm dyneema rope
Maillons
• 4.3mm JOO-TECH/Korea or AirDesign Softlinks
Egenskaper:
SUPERLIGHT CONSTRUCTION
2-LINER TECHNOLOGY
CROSS SHARK-NOSE
NITINOL RODS
RAZOR EDGE
MINI-RIBS (FULL INTERNAL SEAMS)
3D-CUT
VORTEX HOLES
UNSHEATHED COLORED LINES
13mm ARAMID RISERS
SUPERLIGHT BRAKE HANDLES
BS PULLEY CONNECTOR
B/C CONTROL
OPTIONAL SUPERLIGHT DYNEEMA RISERS
I paktet:
- Glider
- AirPack 50/50
- Goodies
- Repair Materials and AirDesign Stickers
